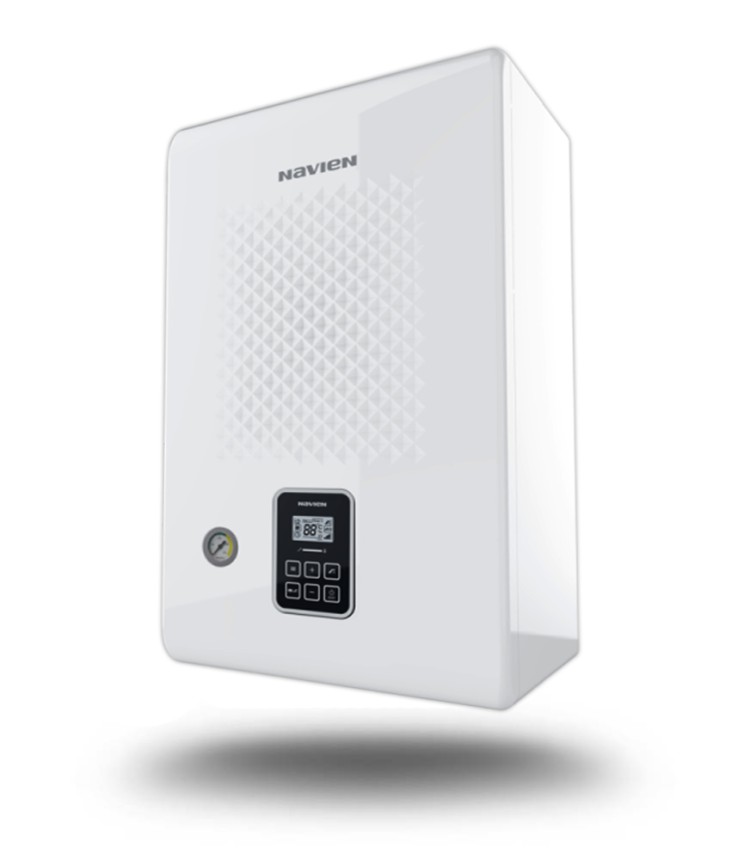

Wall-mounted electric boiler EQB-24HW

DescriptionNavien EQB - electric heating boiler, wall-mounted, single-circuit designed for indoor heating. FEATURES AND BENEFITS: It is possible to connect an indirect heating boiler using a three-way valve and an NTC temperature sensor, while the hot water temperature can be adjusted on the Navien EQB electric boiler control panel. The boiler is equipped with a built-in nickel-plated expansion tank and a built-in circulation pump. For safe operation, the boiler has built-in: pressure sensor, overheating sensor, heating water level and temperature sensor, pressure relief valve. The heating elements are made of nickel alloy (Incoloy 800) with amazing resistance to high temperatures and corrosion in various aqueous solutions. Operation control, adjustment of various operating modes, temperature, switching on and off is carried out using the control panel on the front panel. specifications: Power consumption: 24 kW. Mains voltage: 380 V. Efficiency: 99.6%. Power: 24 kW. Area: 240 m2. Max. pressure: 3 bar. Dimensions: 400 x 695 x 245 mm. Weight: 23.5 kg.more hide
