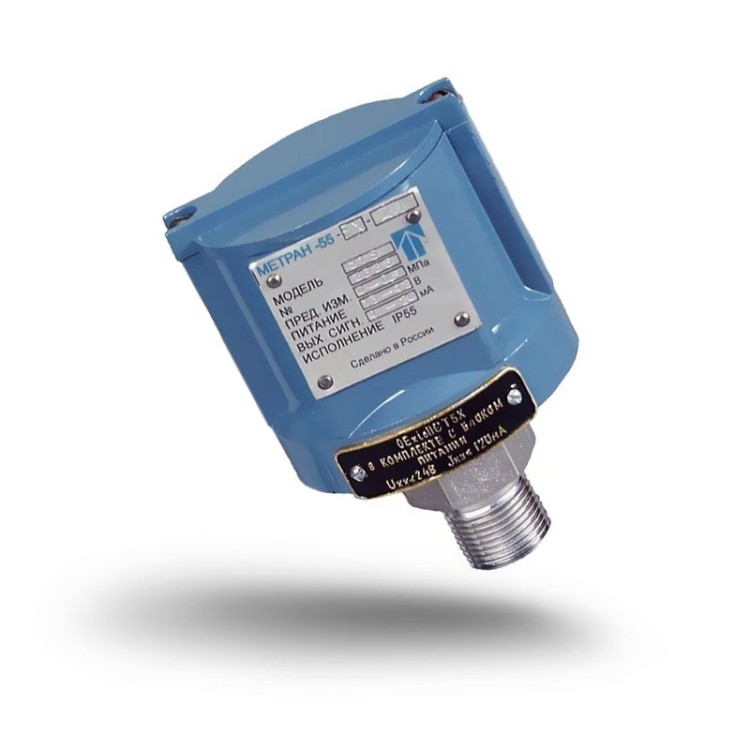

Intelligent overpressure sensor Metran-55-DI-515-MP-t8-015-1.6MPa-42-S-M20-Kr

DescriptionPressure sensors Metran 55-DI-515-MP-t8-015-1.6MPa-42-S-M20-Kr are designed to work in various industries, automatic control systems, regulation and control of technological processes and provide continuous conversion of measured values - excess pressure, absolute pressure, vacuum pressure, hydrostatic pressure into the output signal. features: Simplicity of design, reliability, small dimensions, low cost provide increased consumer demand. A wide range of special designs, including submersible type, provides the ability to measure pressure and level, under conditions of high pressure, high temperature, viscosity and abrasiveness of the medium being measured. Oxygen version. technical specifications: The main reduced error: up to ± 0.1%. Verification interval: 3 years. Pressure measurement range: up to 100 Mpa. Level measurement range: up to 250 m of water.st. Separation membrane materials: stainless steel. steel, Hastelloy alloy, tantalum, ceramics. Versions: explosion-proof. Output signal: 4-20mA, 0-5mA, 0-20 mA, 0-10V, 0-5 V. Warranty period: 24 months. For more information about the product, please check with the seller by contacting him by phone 99871 200-18-00more hide
