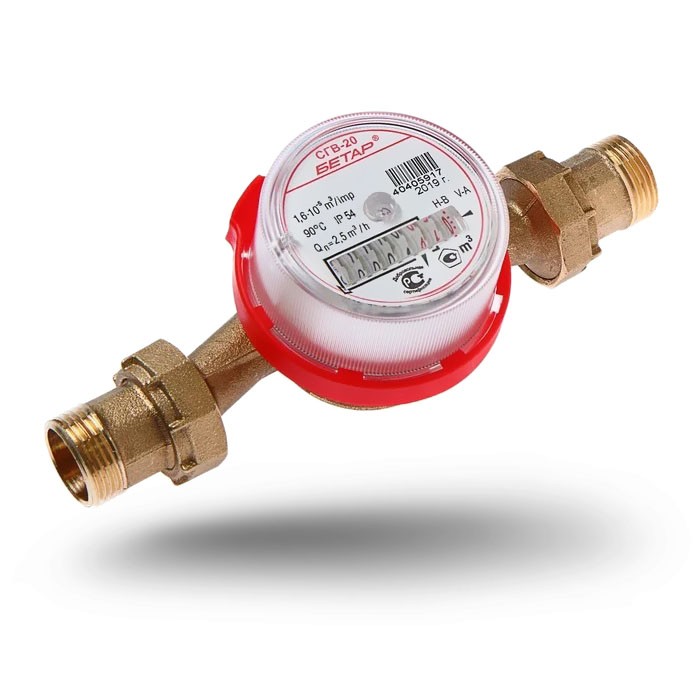

Betar SGV-20 Hot Cold water Meter

DescriptionCold and hot water meters multi-jet vane SGV with a nominal passage diameter of 20 mm, manufactured according to technical conditions, are designed to measure the volume of drinking water flowing in cold and hot water supply systems at temperatures from 5 to 90 °With and pressure up to 1.0 MPa (10 kgf /cm2). Antimagnetic water meters are manufactured on the basis of the use of the latest technologies and scientific achievements. They differ from simple ones in that they are not sensitive to the effects of external magnetic fields. The magnetic protection of the counters is achieved due to the peculiar distribution of domains and the magnetic field in the magnets used in the design of the device. SGV-20 counters come in a brass case complete with connecting fittings. The meters have an indicator device with roller and arrow pointers showing the measured volume in cubic meters and fractions of a cubic meter. Counter Type: UniversalAccounting method: MechanicalConnection: ThreadedDiameter: 20mm Installation Objects:Cottage;Private house (plot);Production;Internal accounting. Completeness of the product:Water meter;Mounting parts;Pads;Passport;Box. Country of manufacturer: Republic of Tatarstanmore hide
