T-slot clamping rail

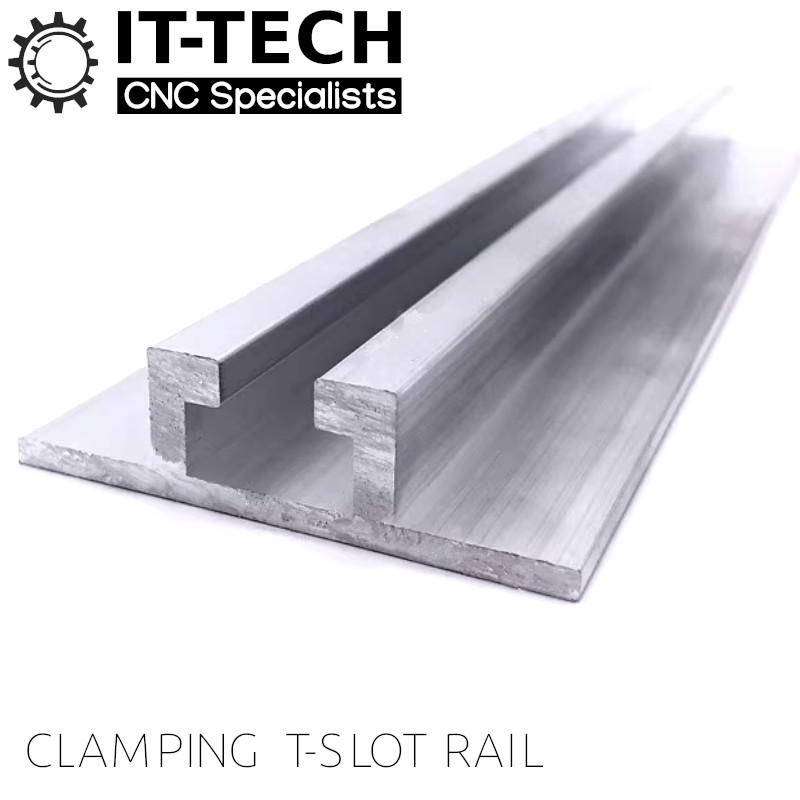

Description T-slot Clamping Rail CNC T-Slot Clamping Rail – 2.5 metre – Compatible with M8 DIN 508 T-Nuts This aluminum T-slot clamping rail is designed for building CNC spoilboards using 18mm MDF plank strips (not included). Simply cut MDF to size and insert between the rails to create a modular and effective clamping surface. Specifications: Material: High-quality aluminum 6063 Available lengths: 2500mm Custom lengths available on request Pre-drilled countersunk holes inside the T-slots for M5 countersunk head bolts Hole spacing: 300mm( /- 5mm) Compatible with standard M8 thread  DIN 508 T-nuts 3D model of the t-slot rail  can be found HERE WHAT’S INCULDED: 2.5 metre  T-slot clamping rail  (MDF boards and bolts not included), we cut t-slot rail to desired length on request. This rail system is ideal for CNC machine beds, jigs, or workholding applications requiring adjustable clamping. For any specific requirements or bulk orders, feel free to contact us. Extrusion may contain some light scratches, please note!
