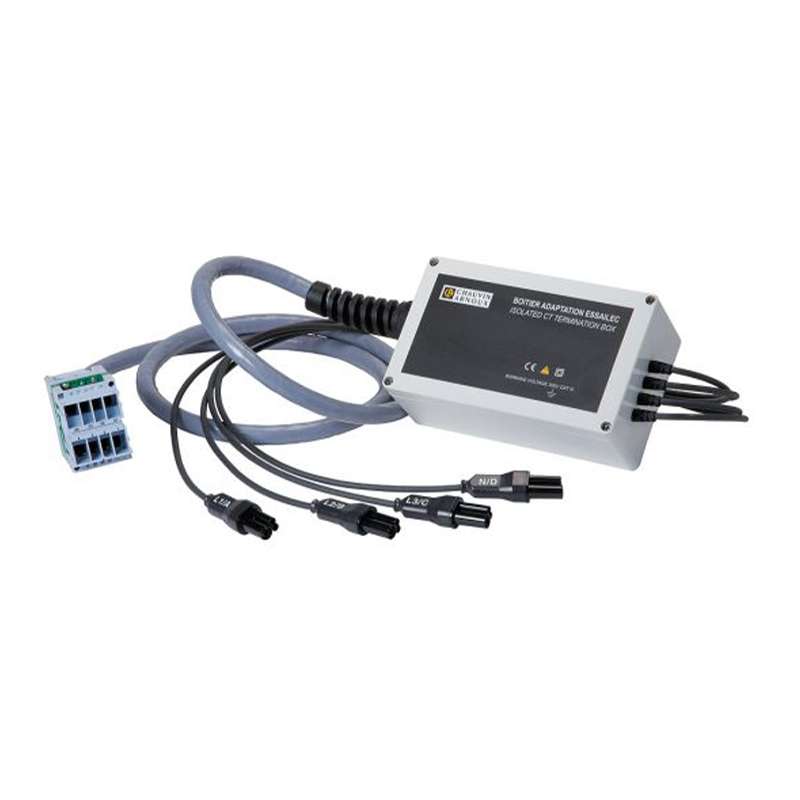

Chauvin Arnoux ESSAILEC Connexion Kit Adaptor (P01102131)

DescriptionWith the Chauvin Arnoux ESSAILEC power outlet socket, you can test meters, built-in protective relays or secondary circuits of voltage or current transformers without interrupting the power supply.ESSAILEC® test adapter for Chauvin Arnoux energy analysers CAPEL, CA8332, CA8334 and CA8335This ESSAILEC® adapter is a 3-phase converter for direct engagement in a ESSAILEC® terminal, it allows for simultaneous measurement of 3-phases and neutral circuit without the need to be broken.Connections are made on ESSAILEC® power terminal which is highlighted green. The adapter has four 5Aac inputs L1, L2, L3, and N connected in ESSAILEC® terminal, and converts these to a voltage of the energy analyser.To start the measurement, connect to the terminal and to CA PEL, CA8332, CA8334 or CA8335, the energy analyser will automatically sense that ESSAILEC® test adapter is plugged in.Compatibility:This accessory is made to be used with the three-phase power analysers of the Chauvin Arnoux Qualistar C.A 8331, C.A 8333, C.A 8335, C.A 8336, C.A 8435, and PEL 1XX familiesMeasurement Categories:Measurement category IV corresponds to measurements taken at the source of low-voltage installations. Example: power feeders, counters and protection devices.Measurement category III corresponds to measurements on building installations. Example: distribution panel, circuit-breakers, machines or fixed industrial devicesMeasurement category II corresponds to measurements taken on circuits directly connected to low-voltage installations. Example: power supply to electro-domestic devices and portable tools.
