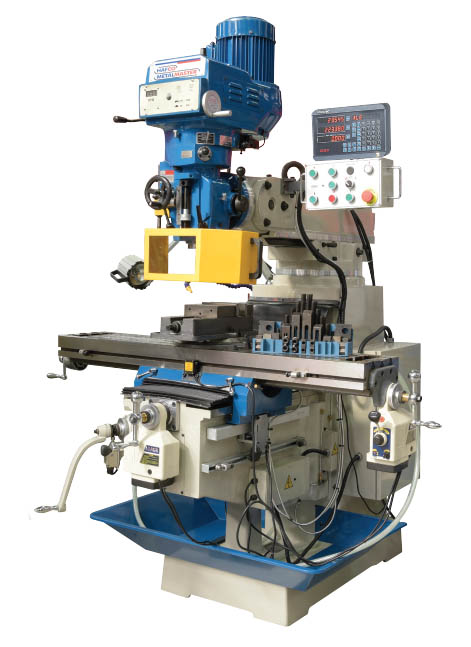

Metalmaster BM-63VE Turret Milling Machine

(Please note this item requires a forklift to unload. Please contact us for freight costs) Features 3 Axis digital readout fitted 5HP 415V motor with mechanical variable speed system (50-3350rpm) NT40 Spindle taper with a 105mm chrome & ground quill Hardened ballscrew X & Y-Axis providing smooth and accurate operation 1370mm x 254mm table with 16mm T-slots Travels: 890mm longitudinal, 400mm cross, 400mm vertical Quill travel:127mm Ram travel: 550mm Spindle to table: 450mm Digital speed readout display for accurate cutter speed Hardened & ground work table & slide-ways Square construction slides for Y & Z-Axis to maximise rigidity Powered elevating motor for Z-Axis Meehanite casting for high strength & minimal deformation Quality electrics & overload protection in an easy access enclosure Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle The ram incorporates a tail lug (spigot) to accept a slotting attachment etc. High / neutral and low gear selection lever to maximise torque X & Y-Axis power-feed with adjustable micro switch feed stops Micro switch on the manual knee handle for additional operator safety Metric dial graduations @ 0.02mm for X , Y & Z-Axis Automatic quill feed 0.04, 0.08, 0.15mm/rev Automatic cut off depth stop on quill Oil lubrication pump and reservoir Slide-way covers Y & Z-Axis Mill head tilts to ±45º forward and back Mill head tilts to ±90º left and right Manual quick action quill lever Mechanical spindle brake Tool box and manual Includes 3 Axis digital readout fitted Hardened ballscrew X & Y-Axis Digital speed readout display One-shot oil lubrication pump and reservoir X & Y-Axis power-feed Z-Axis powered elevating motor Machine vice 160mm Clamp kit set Drawbar M16 thread Coolant system Slideway covers Safety cutter guard Halogen light Swarf tray
