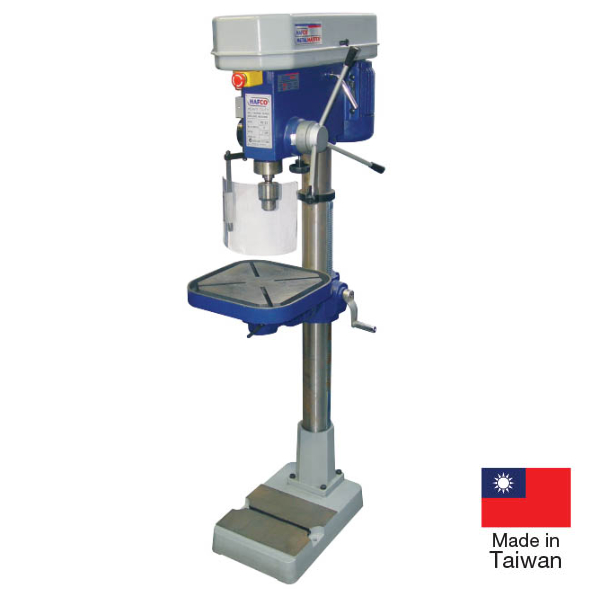

Metalmaster PD-35 3MT 31.5mm Capacity Industrial Pedestal Drill Press

(Please note this item requires a forklift to unload. Please contact us for freight costs) PD-35 – Industrial Pedestal Drill – Belt Drive 31.5mm Drill Capacity 3MT Overview Manufactured in Taiwan Features Ideal for industrial workshop use Quiet B section V-belt drive system Quick action belt tensioning lever Adjustable safety drilling chuck guard with micro switch Safety micro switch on pulley guard Safety magnetic-type switch Emergency stop switch Rack & pinion table height adjustment with locking lever Thick walled column ensuring greater rigidity Table tilts left & right to 45º & rotates 360º Drilling depth stop setting with scale T slotted work table 9 Spindle speeds – 180, 300, 320, 310, 430, 480, 620, 1050, 1200, 1680rpm 240V Fan-cooled motor rated for continuous use with overload protection Made in Taiwan Includes Drill chuck & arbor Chuck key to suit Drill drift ORDER CODE D162 MODEL PD-35 Type – Bench / Pedestal Pedestal Duty Type Industrial-Duty (mm)Drill Capacity 31.5 (MT)Spindle Taper 3 (mm)Spindle Travel 125 (mm)Throat Depth 225 (mm)Quill Diameter 72 (mm)Collar Diameter 92 (mm)Column Diameter 92 (mm)Spindle To Table 730 (mm)Spindle To Base 1175 Table Shape Square (mm)Table Size 350 x 350 Micro Switch On Pulley Guard Yes Drive Belt Type B Section (No.)Spindle Speed Steps 9 (rpm)Spindle Speed Range 180 – 1680 (kW / hp)Motor Power 0.75 / 1 (V / amp)Voltage / Amperage 240 / 10 (mm)Overall Height 1700 (cm)Shipping Dimensions (L x W x H) 137 x 60 x 72 (kg)Nett Weight 151
