Vertex 5″ K Type Milling Vice
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block

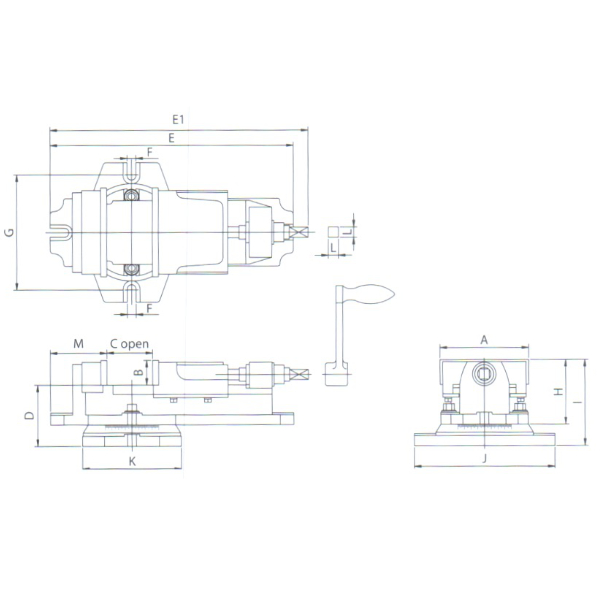

Vertex 5″ K Type Milling Vice. 132mm jaw. 37mm jaw height. 80mm opening. Body made of close grain high tensile iron casting. Jaw plates made of hardened and ground toolsteel. Swivel base. Max. clamping force 900kgf. A:132mm, B:37mm, C (Max):80mm, D:92mm, E:362mm, E1:384mm, F:13mm, G:172mm, H:97mm, I:129mm, J:209mm, K:147mm, L:15mm, M:84mm.
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
