Vertex 5″ Anglock Milling Vice
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block

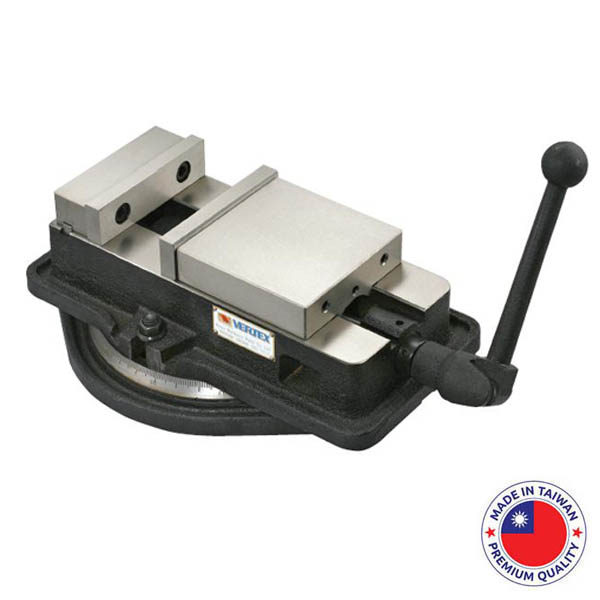

Vertex 5″ Anglock Milling Vice. 135mm jaws. 36mm jaw height. 110mm opening. Semishphere in moving jaw thrusts moveable jaw downward on horizontal force creating the angle lock feature. Leadscrew and sliding surface hardened and ground. Swivel base. Max. clamping force 2000kgf. A:135mm, B:36mm, C (Max):110mm, D:97mm, E:359mm, E1:394mm, F:17mm, G:246mm, H:101mm, I:133mm, J:277mm, K:255mm, L:14.5mm, M:85mm, N:16mm, P:15mm.
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
