Preheater IR 130×130 600W Thermaltronics
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block

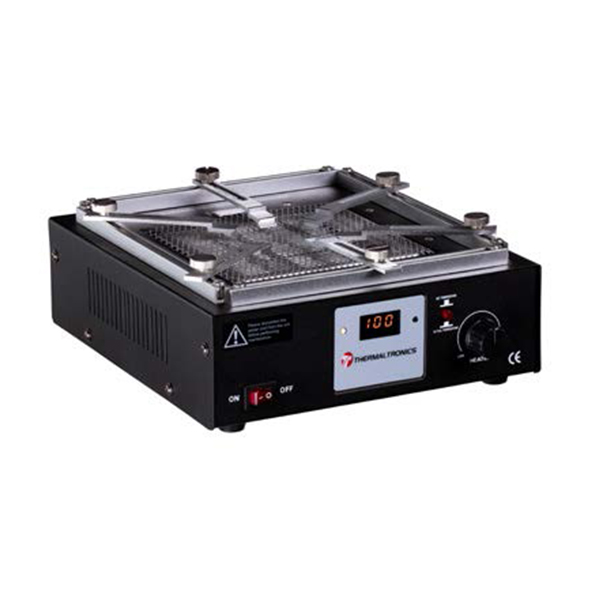

See data sheet here The TMT-PH200 infrared, board preheater is suitable for leaded and lead free, applications. A sensor controlled feedback loop system with digital display enables easy adjustment of temperature. ESD SAFE LEAD FREE • Adjustable, easy to use temperature control knob • Digital display shows temperature • Utilizes a quartz infrared heater • Sensor control feedback loop to control temperature Input Line Voltage: 220-240 VAC Power: 600 Watts Temperature Range: 100 °C – 380 °C Heating Area (W x L): 130mm x 130mm Heating Method: Infrared Fuse: 250V 5A Size (W x H x D): 220mm x 73mm x 250mm Weight: 2.1 KG
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
