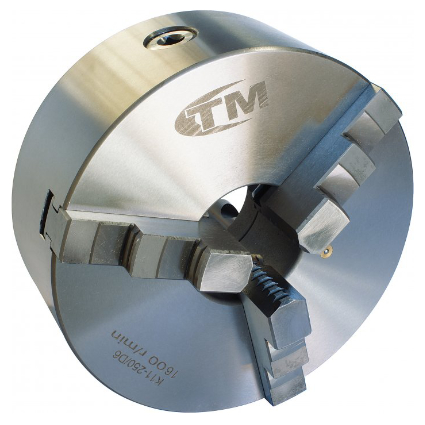

Toolmaster 250mm 3 Jaw Lathe Chuck Camlock Mount D1-6
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
250mm D1-6 Camlock Mount Overview K11 SERIES Cast Iron Body Standard GB/T 4346.2-2002 Features World-class and industry leader in the manual lathe chuck field with over 30 years of manufacturing ToolMaster quality assurance and accuracy testing ensure standards remain high. ToolMaster is ISO 9001-2000 approved Each chuck is supplied with a set of inside and outside jaws and a chuck key Includes Outside jaws Inside jaws Mounting screws Chuck key ORDER CODE C263 (mm)Chuck Size Ø250 Camlock D1-6 (mm)Outside Jaw 6 – 110 (mm)Inside Jaw 90 – 250 (rpm)Speed 1600 (mm)D1 106.3 (mm)D2 133.4 (mm)D3 80 (mm)H 120 (mm)H1 80 (mm)h 5 (kg)Nett Weight 26
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
