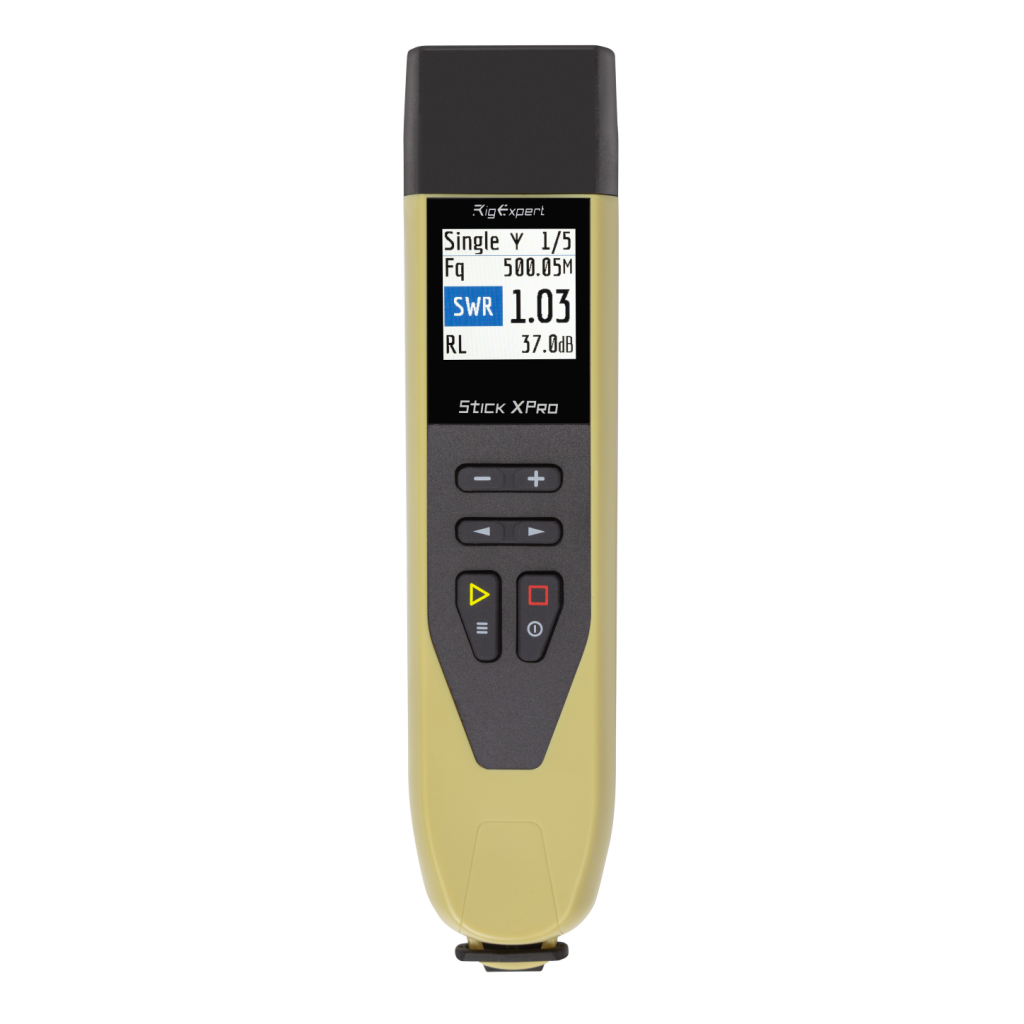

Antenna Analyzer Stick XPRO Rigexpert

If you’re a licenced ham radio operator, we may be able to provide discount on certain models – please contact us. Frequency range 0.1 to 1000 MHz Frequency entry 1 kHz Measurement for systems 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm SWR measurement range 1 to 10 in chart modes 1 to 100 in numerical modes R and X range 0… 10000, -10000… 10000 Display modes HAM (a quick check of single band antenna) Multé (a quick check of multiband antennas) OSL calibration mode R, X chart Return loss chart Single (measure SWR, |Z|, R, X, C, L, RL, Mag&Phase) SWR chart TDR (distance to fault) Сable tools (StubTuner, Cable Length, Impedance, Loss measurements) RF output Connector type: N Output power: -10 dBm (at a load of 50 ohms) Output signal shape: square Power One lithium-ion battery 3.7 V type 18650 When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources Сharge time: 3 hours when using a charger Interface 2 × 3 keys on the waterproof keyboard 290×220 color TFT display Menus and help screens in English (by default), Japanese USB connection to a personal computer Operating temperature -20°- 55°C (-4°-131°F) Weight 185 grams (6.5 Oz) with battery Dimensions 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches) Accessories inside the box Quick-start guide, Neck strap, USB cable, N-type to UHF adapter GTIN-13 4820185420365 Note Specifications are subject to change without notice Мade in Ukraine
