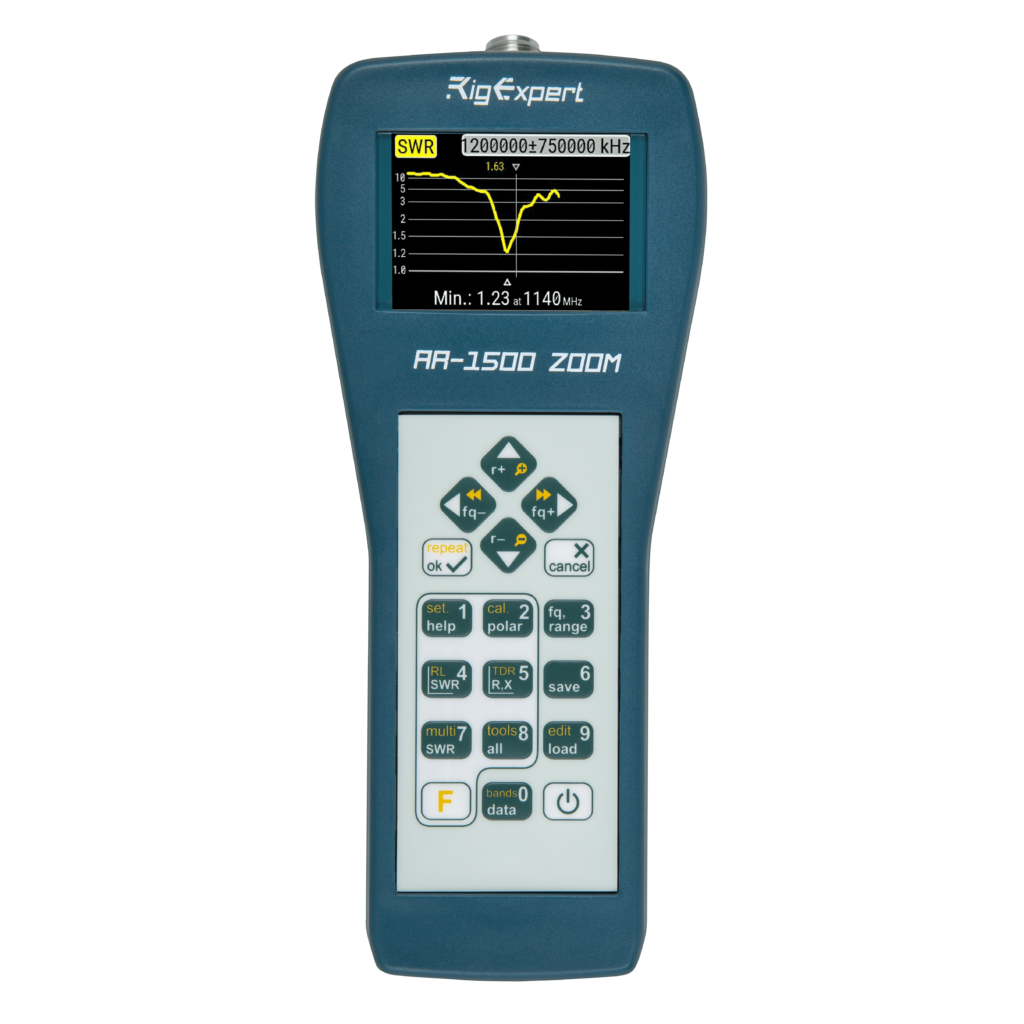

Antenna Analyzer AA1500-ZOOM Rigexpert

If you’re a licenced ham radio operator, we may be able to provide discount on certain models – please contact us. Frequency range 0.1 to 1500 MHz Frequency entry 1 kHz Measurement for systems 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm SWR measurement range 1 to 10 in chart modes 1 to 100 in numerical modes R and X range 0…2000, -2000…2000 Display modes Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement, LC meter, Multé) Optional open-short-load calibration R, X chart Smith chart SWR at single or multiple frequencies SWR chart TDR chart (Time Domain Reflectometer) User OSL: 10 profiles available RF output Connector type: N Output power: -10 dBm (at a load of 50 ohms) Output signal shape: square Power Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used Three 1.2V Ni-MH batteries, type AA Three 1.5V alkaline batteries, type AA Three 3.7V LiPo batteries, 14200 When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources Interface 6×3 keys on the water-proof keypad 800×480 color Blanview® display Bluetooth Specification v.4.2, LE Menus and help screens in English (by default), French, Italian, Japanese, Ukrainian, Portuguese, Spanish and German USB connection to a personal computer Operating temperature 0…40 °C (32…104 °F) Weight 442 g (15.6 oz) Dimensions 100 × 230 × 55 mm, (4 × 9 × 2 in) Accessories inside the box Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter GTIN-13 4820185420310 Note Specifications are subject to change without notice Мade in Ukraine
