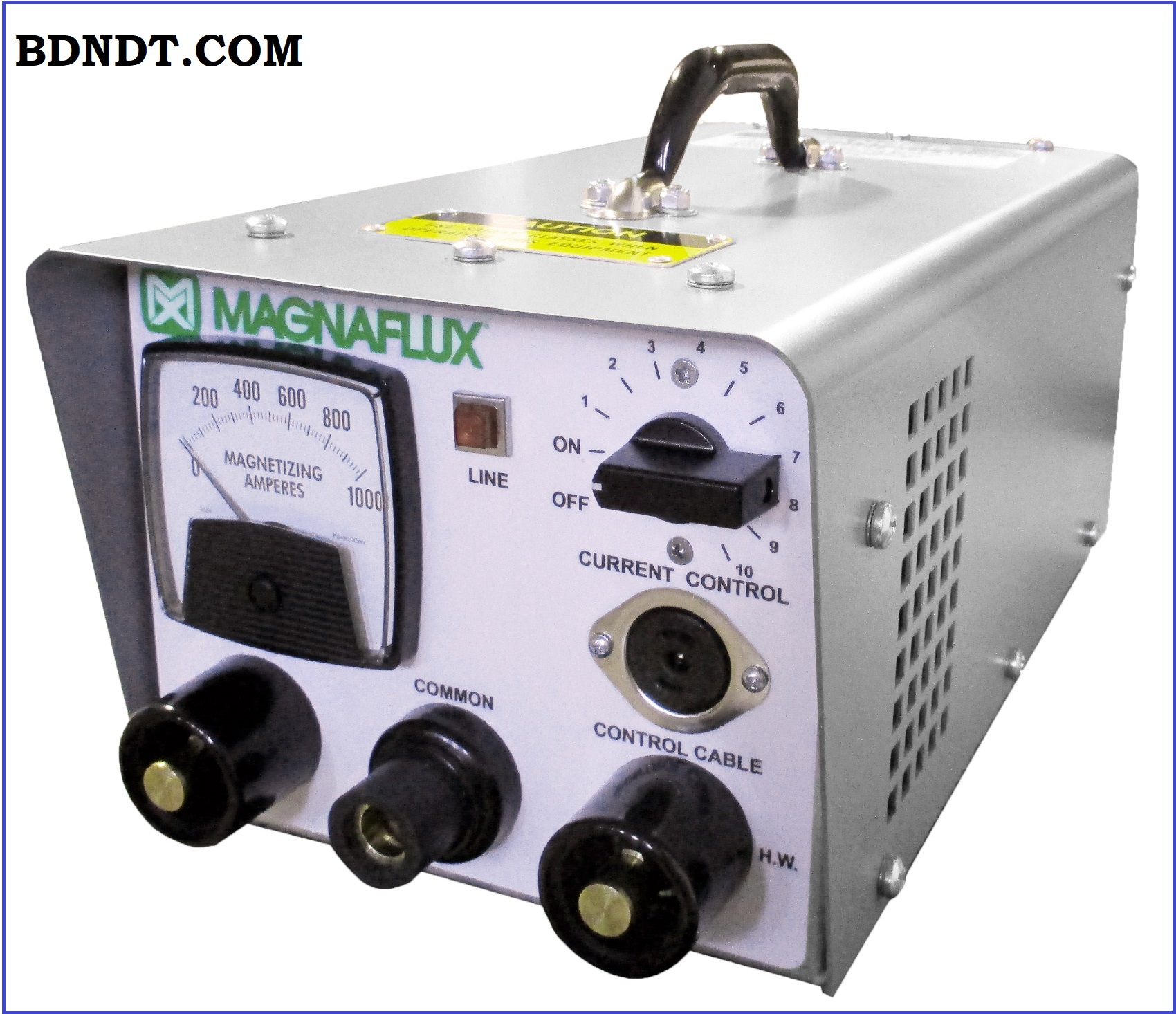

Magnaflux P-1500 Portable Power Pack 230V Price

PRODUCT INFORMATION Find surface defects with AC current; switch cable connection to half wave DC (HWDC) for near-surface flaws Locate defects in any direction using prods, central conductor, coil (wrap part with 3-5 turns of cable) Infinitely variable current control Demagnetize your parts in AC mode by slowly turning the current dial to zero Built-in automatic-reset circuit breaker May be used as the main power source for the Magnaflux MAG Kit modular bench inspection system SPECIFICATIONS P-70 Length: 17.5″ (44.5 cm); P-1500 Length: 22″ (55.9 cm) P-70 Width: 9″ (22.9 cm); P-1500 Width: 9.5″ (24.1 cm) P-70 Height: 8″ (20.3 cm); P-1500 Height: 9.5″ (24.1 cm) P-70 Maximum Output*: 750 amps, AC or HWDC; P-1500 Maximum Output: 1500 amps, AC or HWDC P-70 Available Voltages: 115,230, 50 or 60 Hertz; single phase power; P-1500 Available Voltages: 230,460, 50 or 60 Hertz; single phase power P-70 Line Current: 26 amps @ 115 VAC; 13 amps @ 230 VAC; P-1500 Line Current: 42 amps @ 230 VAC; 21 amps @ 460 VAC Maximum Duty Cycle: 2 minutes ON, 2 minutes OFF P-70 Unit Weight: 35 lbs (15.9 kg); P-1500 Unit Weight: 93 lbs (42.2 kg) Note:  Current ratings are based on the use of two 15-foot length 4/0 Cable   RESOURCES Datasheet P-Series_PDS
