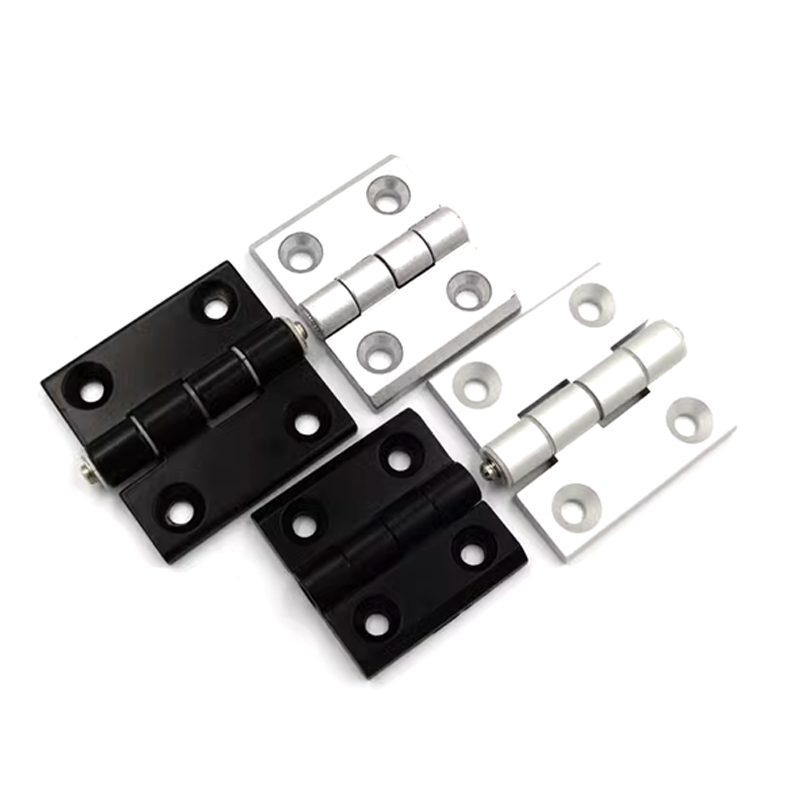

Item Name: Aluminum Profile Hinge for 20 30 40 Series Aluminum Extrusion Profile Material: Zinc Alloy, Aluminum Alloy Measurement System: Metric PCs in Item: 1 Set: Hinge x 1 T Nuts Screws Manufacturer: N/A, Made in China Model W1(mm) H(mm) w2(mm) h(mm) ØA t(mm) Flat Socket Cap Screw 2020 Regular 39 30 20 14 5.2 3.6 M5 x 10 2020 Silent Bearing 36 47 21 25 5.2 3.6 M5 x 10 3030 Regular 51 40 30 24 6.2 3.6 M6 x 14 3030 Silent Bearing 48 47 31 30 6.2 3.6 M6 x 14 4040 Regular 61 45 40 25 6.2 3.8 M6 x 16 4040 Silent Bearing 62 63 41 40 6.2 3.8 M6 x 16
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
