DC110V 500W CNC Spindle and Kit
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block

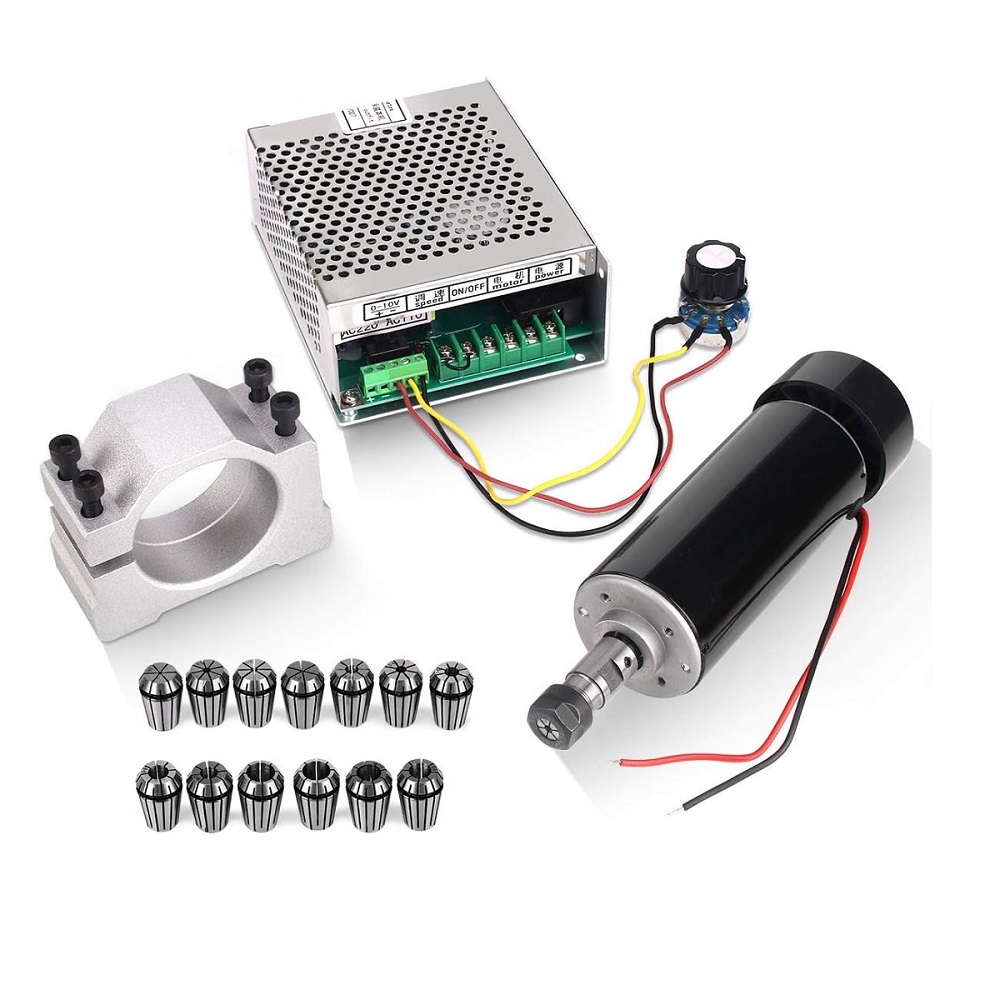

Item Name: DC110V 500W CNC Spindle and Kit PCs in Item: See Options Manufacturer: N/A, Made in China Kit Includes: Item# Item Specification 1 Spindle 500W, 110VDC/6A, ER11 or ER16 2 Power Supply 110VDC Output, 110VAC/220VAC Input 3 Spindle Mount Bracket Ø52, Aluminum Alloy 4 Collet Set (with box) ER11 (7 PCs Collets), or ER16 (10 PCs Collects) 300W Spindle 400W Spindle 500W Spindle Operation Voltage: 12-48VDC 12-48VDC 12-48VDC Power: 300W 400W 500W Rotation Speed: 3000-12000 RPM 3000-12000 RPM 3000-12000 RPM Torque: 400mN.m 500mN.m 550mN.m Insulation Resistance: 2 megohms 2 megohms 2 megohms Dielectric strength: 400V 400V 400V Motor Diameter: 52 mm 52 mm 52 mm Motor Length (chuck and air fan excluded): 90 mm 100 mm 120 mm Chuck option: ER11 or ER16 ER11 or ER16 ER11 or ER16
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
