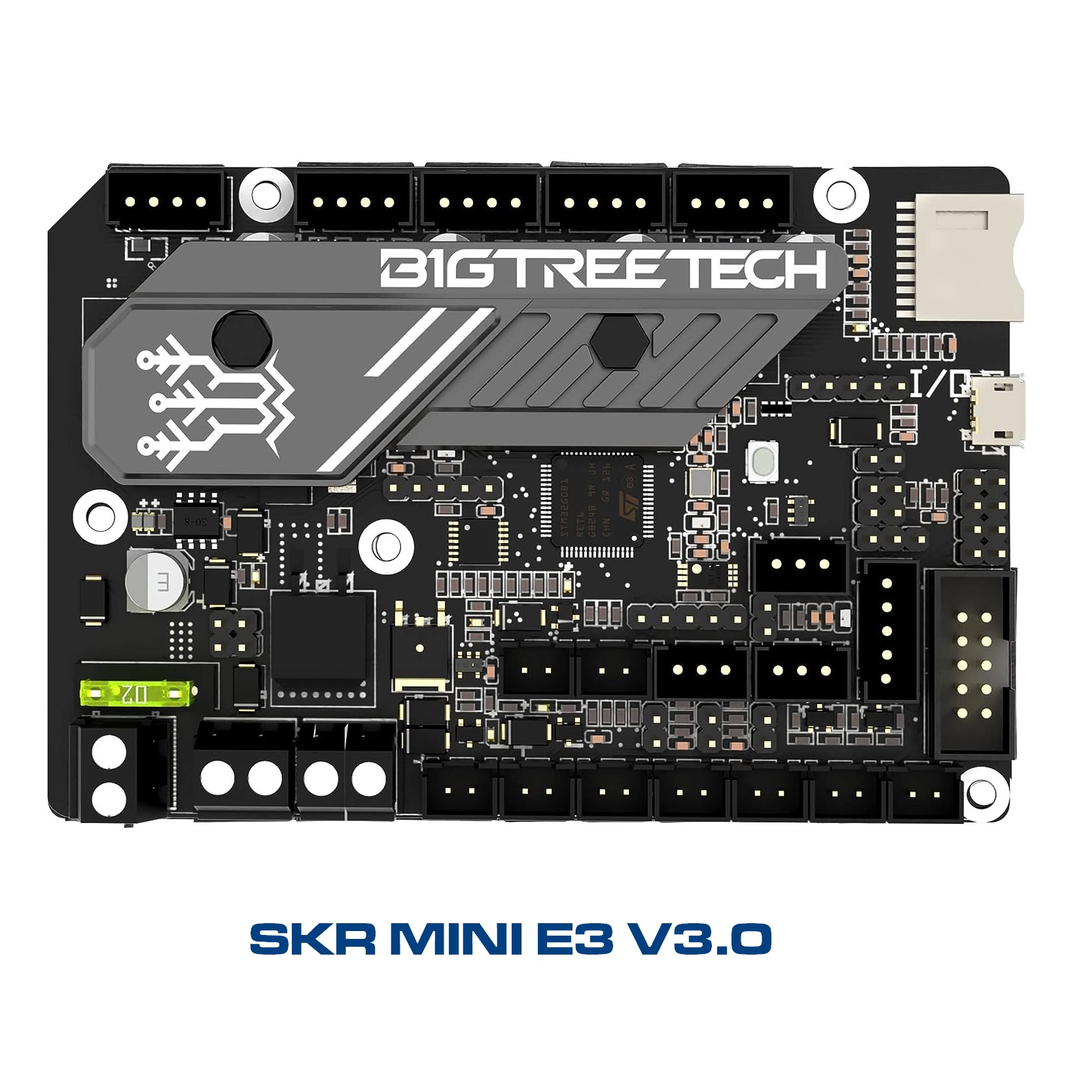

BIGTREETECH SKR Mini E3 V3.0 Control Board for 3D Printer
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Item Name: BIGTREETECH SKR Mini E3 V3.0 Control Board for 3D Printer Feature: ARM Cortex-M0 STM32G0B1RET6 or STM32G0B0RET6; Interface: Micro USB; Full English User Manual with Live Chat Technical Support; Main control chip of BTT SKR Mini E3 V3.0 mainboard is STMicroelectronics’ latest G0 series: STM32G0B1RET6 or STM32G0B0RET6. Compatible with Ender-3, Ender-3 V2, Ender-3 Pro, Ender-5 and Ender-5 pro. Upgraded SKR MINI E3 V3.0 has a larger aluminum heat sink area for stepper motor driver. 3 heat dissipation controllable fans to reduce the heat of 3D printers. SKR Mini E3 V3.0 motherboard supports BLTouch, RGB lights, blocking detection and shutdown function. Supports TFT35 E3 V3.0.1/TFT35 V3.0.1/TFT28 V3.0 touch screen as well as original 12864 LCD screen. Integrated with ultra silent TMC2209 stepper motor driver. Compatible both with Marlin and Klipper firmware. PCs in Item: 1 PC Manufacturer: BigTreeTech, China Reference: Official User Manual on github: Mini E3 V3 User Manual Parameter SKR MINI E3 V3.0 Product Dimension 103.75 x 70.25 mm PCB Layers 4 MCU ARM Cortex-M0 STM32G0B1RET6 Power Input DC 12/24V Motor Driver UART mode of on-board TMC2209 Motor Driver Interface XM,YM,ZAM,ZBM,EM Temperature Sendor TH0,THB,2-way 100k NTC(RTD) File Format Support G-Code
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
