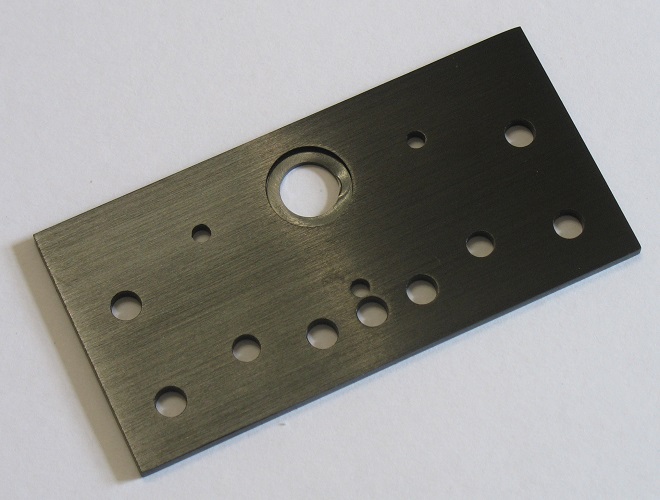

Actuator End Plate

This plate was designed to be used with the Maker Store Actuator. With a recessed groove for mounting a 688Z Bearing the plate has been designed to fit the end of two 20×40 V-Slot rails and have the 8mm Lead Screw run through for driving the 100mm Gantry Plate. Three holes allow for mounting another 20×60, 20×40 or 20×20 rail underneath, enclosing three side of the actuator. Both NEMA17 and NEMA23 stepper motors can be mounted to either end.   The design allows for the actuator to be mounted directly on the Maker Store Z-axis Ox Plate!   6063-T6 Aluminum Black Anodized Finish 3mm~ (1/8″) Thick   Buy individually or in the 300mm Actuator Kit.
