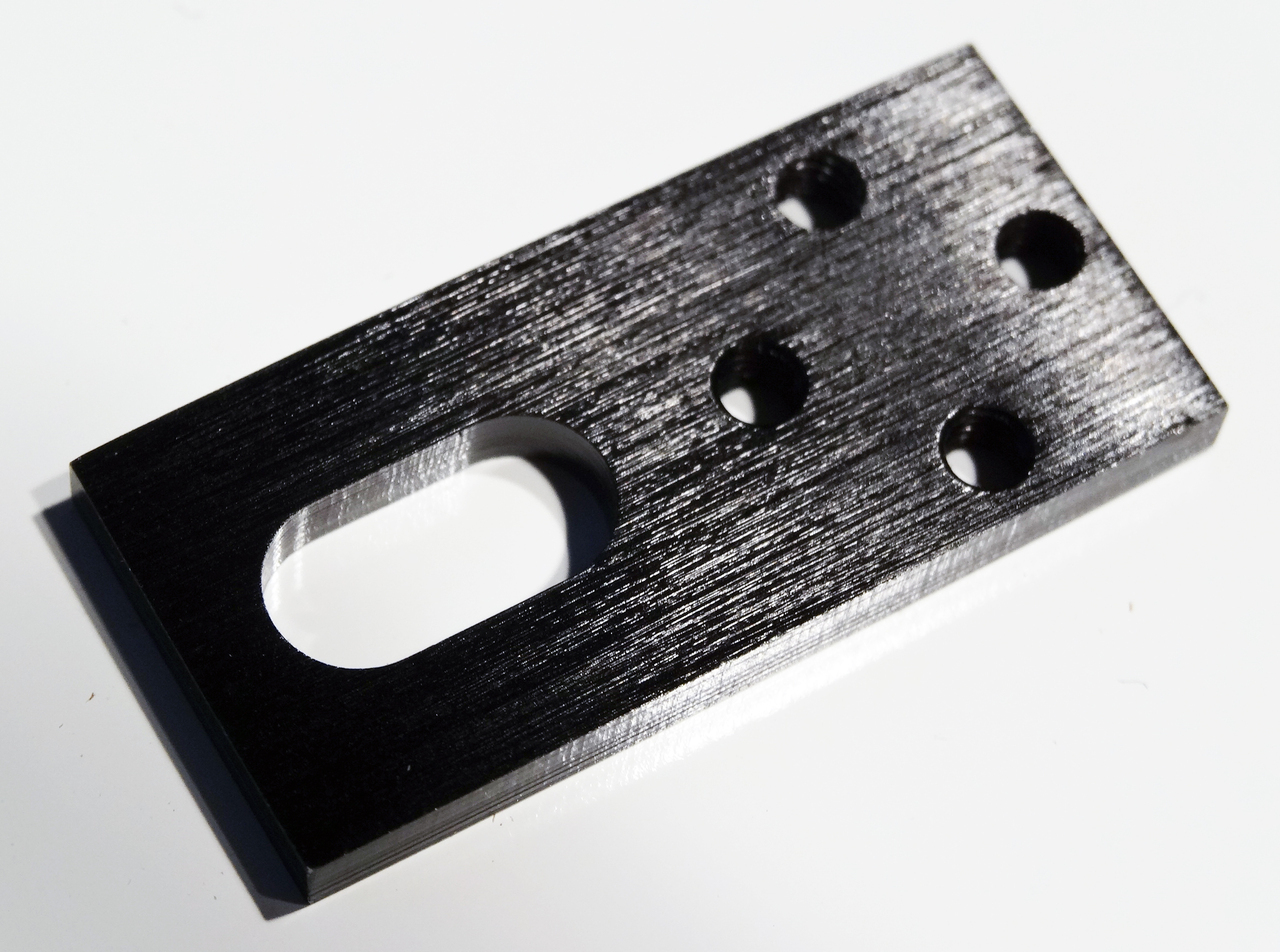

Limit Switch Plate

These limit switch plates mount to V-Slot or compatible extrusion. They give you multiple ways to mount and arrange your switches adjustable along the length of the linear guide. Adjustments are made with just one screw to allow for quick and precise switch engagement. They are super easy to use and there are many examples to use in the included model. 15x32mm There are 4 threaded M3 mounting holes to mate a micro limit switch to in either vertical or horizontal position and a elongated M5 hole for slotted extrusion mounting/adjustment. These plates work with the OpenBuilds Part Store micro limit switch. NOTE: The holes in the switch will need to be opened a little (3mm or 1/8″ drill bit) to allow for the M3 screw or alternatively you can work the screw into the plastic.
