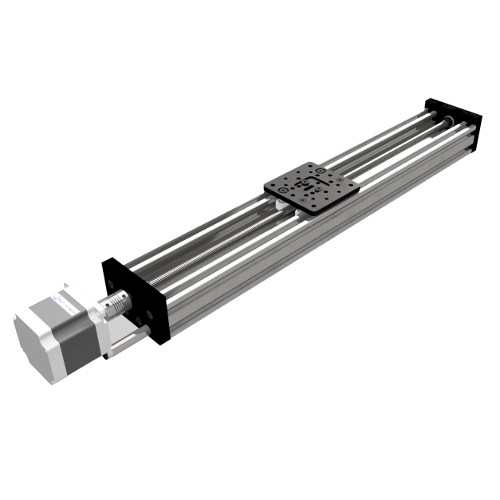

C-Beam 500 Actuator Kit

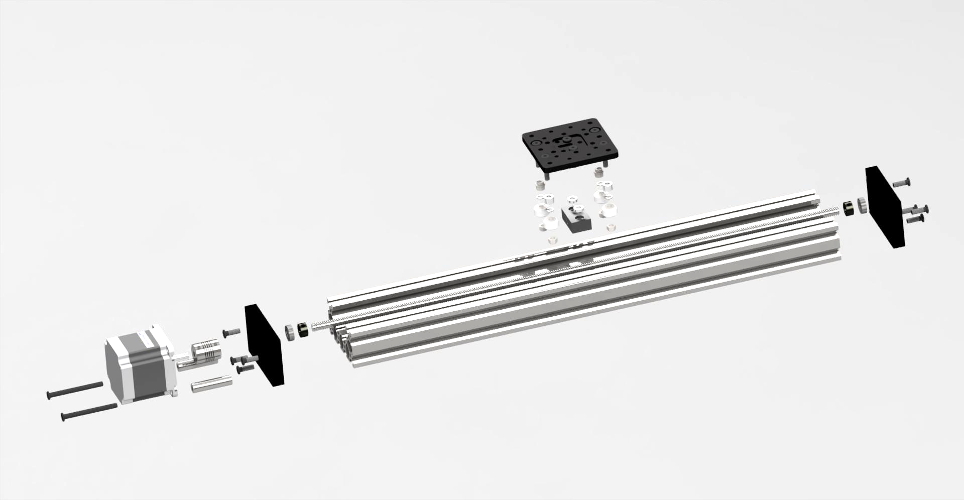

The C-Beam 500 Actuator Kit is a 500mm long linear actuator driven by our ACME lead screw. The kit is an easy way to get all the pieces needed for the build.   The kit includes: Product SKU QTY 688Z Ball Bearing – 8x16x5 BEAR-688Z 2 Hardware Pack CB-ACTUATOR-HW-PACK 1 8mm Metric Lead Screw / ACME HARD-ACME-8-540 1 Anti-Backlash Nut Block HARD-ACME-8-ANTI-BLOCK 1 Lock Collar – 8mm HARD-COLL-8MM 2 6.35mm x 8mm Flexible Coupling HARD-COUP-635X8 1 C-Beam™ – 500mm LR-C-S-500 1 C-Beam™ End Mount PLATE-C-END-V3 2 C-Beam™ Gantry Plate PLATE-C-GANTRY 1 Eccentric Spacers – 8mm Hex-6mm SHIM-ECCENTRIC-8 2 Mini V Wheel Kit WHEEL-MINIV-KIT 4 Tools required: Allen keys M5 Tap 8mm spanner/wrench     Note: NEMA23 STEPPER MOTOR NOT INCLUDED “C-Beam” is a trademark of Openbuilds.
