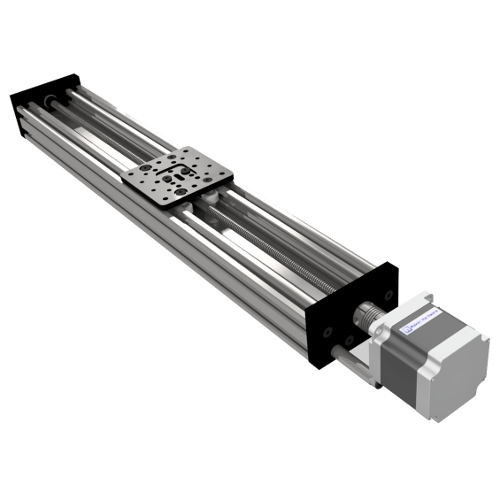

C-Beam 1000 Actuator Kit

The C-Beam 1000 Actuator Kit is a 1000mm long linear actuator driven by our ACME lead screw. The kit is an easy way to get all the pieces needed for the build.   The kit includes: Product SKU QTY 688Z Ball Bearing – 8x16x5 BEAR-688Z 2 Hardware Pack CB-ACTUATOR-HW-PACK 1 Nema 23 Stepper Motor 1.26N.m (6.35mm shaft) ELEC-NEMA23-635 1 8mm Metric Lead Screw / ACME HARD-ACME-8-1070 1 Anti-Backlash Nut Block HARD-ACME-8-ANTI-BLOCK 1 Lock Collar – 8mm HARD-COLL-8MM 4 6.35mm x 8mm Flexible Coupling HARD-COUP-635X8 1 C-Beam – 1000mm LR-C-S-1000 1 C-Beam End Mount PLATE-C-END-V3 2 C-Beam Gantry Plate PLATE-C-GANTRY 1 Eccentric Spacers – 8mm Hex – 6mm Height SHIM-ECCENTRIC-8-6 2 Mini V Wheel Kit WHEEL-MINIV-KIT 4 F8-16M Thrust Bearings BEAR-F8-16M 2 Lead screw tensioning tool TOOL-LST-ACME-8 1 Tools required: Allen keys M5 Tap 8mm spanner/wrench     Note: NEMA23 STEPPER MOTOR NOT INCLUDED “C-Beam” is a trademark of Openbuilds.
