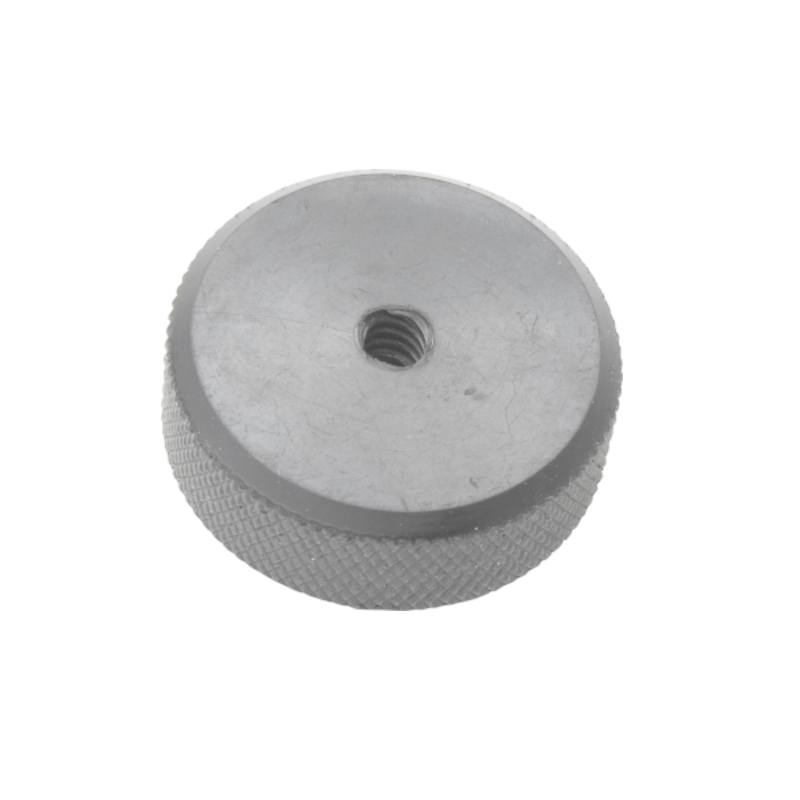

Lead Screw Tensioning Tool
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
The Lead Screw tensioning tool allows you to easily put your lead screw in tension. This tool reduces lead screw whip, which is common in lead screws with lengths greater than 1000mm/39in, and ensures that your machine is running smoothly. With a 1500mm/60in lead screw place under tension speeds of 6000mm/min can be achieved. Use a Thrust Bearing and Lock Collar at both ends of your axis to hold tension on the lead screw. Specifications: Material: Polyoxymethylene (Delrin) Colour: Black Diameter: approx 2in (50mm) Thickness: approx 0.7in (18mm) Suitable Lead Screw: ACME thread TR8x8(P2) How to use: For how to install tension on our ACME lead screw axis take a look at our resources here Tips and Tricks Make sure that your motors are energized when you start the tensioning process. When inserting the tool, make sure that the direction of the thread matches to avoid damaging the tool. Please Note: This tool is suitable for our 8mm Metric ACME Lead Screws.
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
