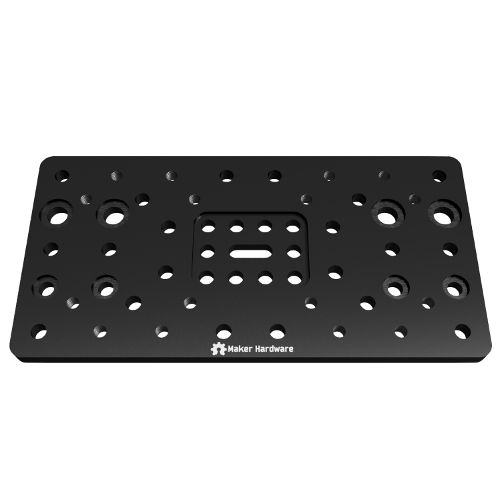

C-Beam™ Gantry Plate – Double Wide

This C-Beam Double Wide Gantry Plate is designed to provide a stronger, more stable platform for your Builds. The extra wide wheel stance and ability to add up to 8 Mini V Wheels ensures this plate will be strong enough for most applications. Designed specifically to provide a much stronger Z Axis system but is modular enough to be used on any axis. Flush, clean finish with wheels that ride on the internal V tracks of C-Beam. A strong 6mm thick aluminium plate 155mm Long x 77.5mm Wide Mates at 90 degrees to another plate allowing for the best in an XY and Z system Brushed black anodized for a finished look Recessed screw pockets ensure flush mounts Includes pre-tapped mounting holes for a clean 90 degree mounting solution Adjustable end holes allow for creating a very accurate and reliable double Nut Block system Center recess allow for single nut block mounting Up to 8 wheel mounting configuration for secure and precise rail lock in The wide wheel spread along the axis makes for a very sturdy axis.   Use in conjunction with either the Xtreme Mini Wheels or the Delrin Mini Wheels.     Note: “C-Beam” is a trademark of Openbuilds.  “C-Beam” is Open Source Hardware (OSHW)
