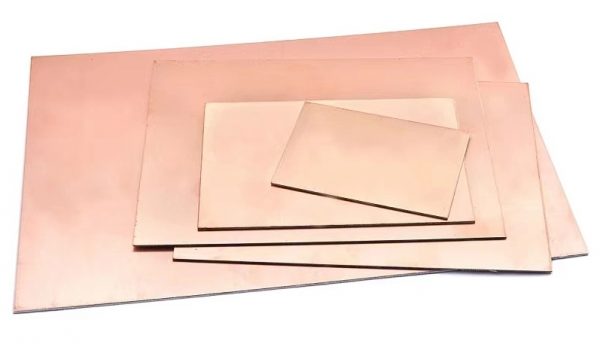

Copper Clad Board FR4 Plain Raw Double Sided Ink Resist FR4 Fibre Glass
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Raw Double Sided Copper Clad FR4 Epoxy glass Laminate material ideal for the production of high quality printed circuit boards with CNC Isolation Routing Drilling Machines, Dry Film Laminators, Screen Printed Resists, LDI Laser Direct Imaging and Etching processes. All laminate is manufactured and tested in accordance with IPC4101C/21 By special request the material can be cut to any required size. Specifications: Thickness 1.6mm Copper foil 35 micron/1oz Dissipation factor 35 Dielectric constant 5.4 Solderbath resistance (260°C) 20 secs
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
