PCB Assembly Jig Circuit Board Holder PCSA-1
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block

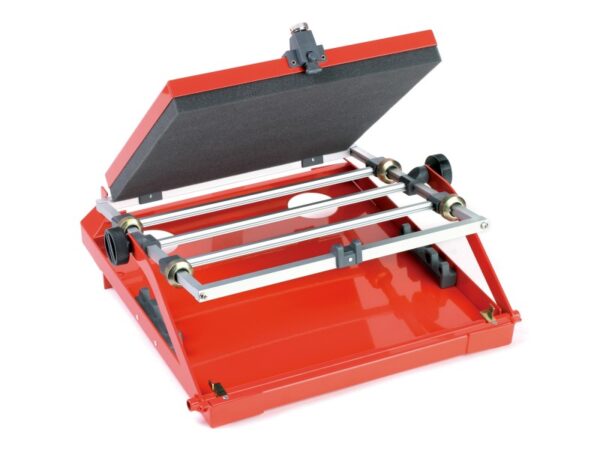

The PCSA-1 is a PCB circuit board holder. This is an ideal tool for fitting circuit boards with components. The holder can easily be demounted in single parts and be reassembled in different combinations. The standard models PCSA-1 is equipped with 1 foam rubber ESD safe, 1 cover, 1 removable middle bridge and 2 adjustable splints thus two work areas can be created. Circuit board holders can be fitted with 6 additional subdivisors Small circuit boards can be used on several levels Work surface area is 280mm x 220mm FEATURES: – Circuit board holders of the PCSA series are the ideal tool for fitting circuit boards with components. The holder can easily be demounted in single parts and be reassembled in different combinations. – The model PCSA-1 is equipped with 1 removable middle bridge and 2 adjustable splints. Thus two work areas can be created. – Any circuit board holders can be fitted with additional subdivisors (4 for PCSA-1/2 and 6 for PCSA-4). That way small circuit boards can be used on several levels.
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
