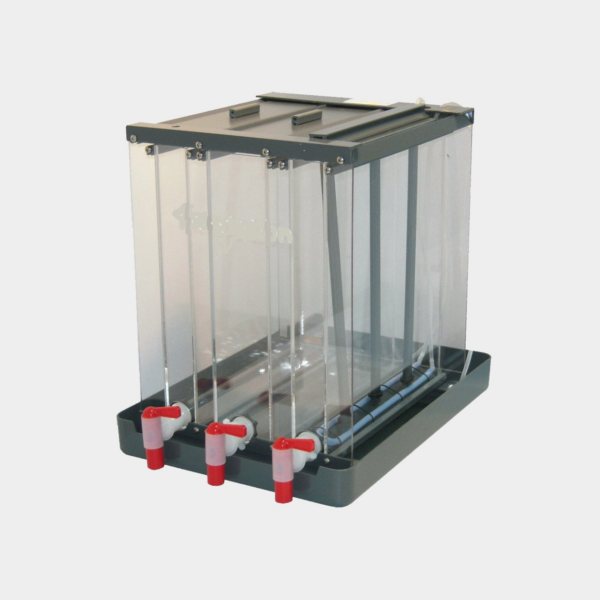

PA310 3 Tank Bubble Etch (29 x 40cm Board Capacity)
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Develop, Wash and Etch The PA310 is a popular PCB processing unit. A self-contained triple process unit with built-in DEVELOP / WASH / BUBBLE ETCH functions providing a convenient bench standing system. The PA310 eliminates the normal untidiness associated with producing PCBs to the solderable-etched stage. A RESIST STRIP / WASH / IMMERSE TIN combination can be added to provide a full PCB processing run. Supplied Complete with 2 metre mains cable. Operating Voltage 230VAC 50Hz/60Hz 600 Watts 1 x Adjustable Heater Approximately preset to 45 °C (113°F) Suitable for metal Etching applications including the production of PCBs, from photoresist coated or conventional copper clad boards Adjustable board holder to a maximum (240 x 310 mm) Board/Panel capacity Only suitable for use with Fine Etch Crytals (Sodium Persulphate) not recomended for use with Ferric Chloride Unit Size Width 42cm, Depth 32cm, Height 44cm Weight 6Kg Shipping Dimensions Width 53cm Depth 44cm Height 61cm
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
