Mitutoyo 20-25mm Digital Holtest 468-136

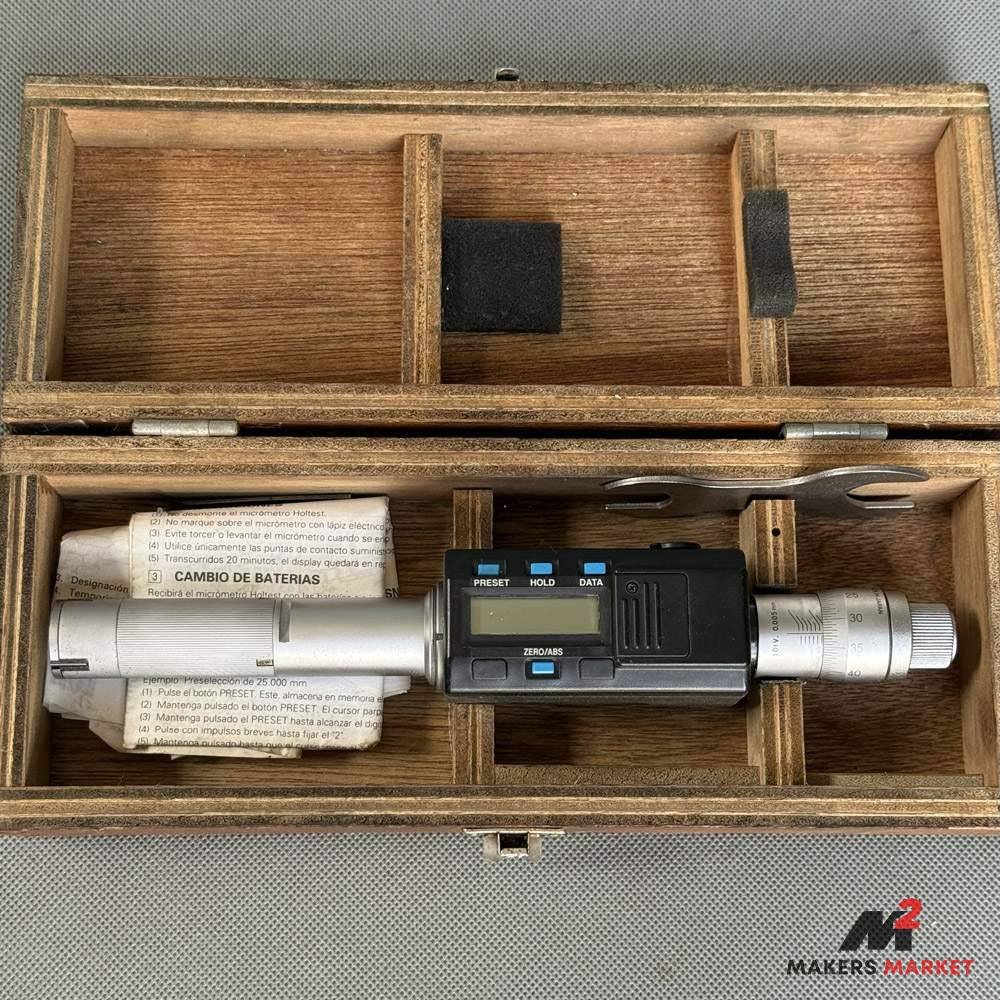

Description Product Overview The Mitutoyo 468-136 is a high-precision Digimatic Holtest (Three-Point Internal Micrometer) designed for the rapid and accurate measurement of bores in the 20mm – 25mm range. Three-Point Accuracy: Unlike two-point calipers which can rock inside a bore, this tool features three self-centering anvils spaced at 120°. This design automatically centers the tool in the bore, ensuring reliable measurement of the true diameter. TiN Coated Points: The measuring contact points are coated in Titanium Nitride (TiN). This gold-coloured coating is extremely hard, providing superior wear resistance and allowing for smooth operation even in abrasive environments. Blind Hole Capable: The contact points are positioned close to the bottom face of the head, allowing you to measure right to the bottom of blind holes. Ratchet Stop: Features a ratchet mechanism in the thimble to ensure constant measuring force, eliminating operator error. IP65 Protection: Sealed against dust and coolant ingress, making it suitable for use directly on the machine shop floor. Condition Used (Great Condition / Wooden Case). This instrument is in great used condition and functions well. The electronics are crisp, and the mechanical action of the anvils is smooth. Housing: It comes stored in a Wooden Box, which offers superior protection and humidity control compared to modern plastic cases. Included: The unit comes with the correct Spanner for battery changing/adjustment. Note: As with most individual Holtest units, a 25mm Setting Ring is not included in this specific listing. Brand Information Mitutoyo Corporation (est. 1934) is the global benchmark for dimensional metrology. The “Holtest” (Hole-Test) series is widely considered the best pistol-grip/thimble bore gauge system in the world, prized for its ability to repeat within microns even in the hands of a novice. Specifications FeatureSpecificationModel468-136Range20mm – 25mmResolution0.001mmAccuracy±3µmContact PointsTiN Coated (Titanium Nitride)ProtectionIP65 (Dust/Water Splash Proof)BatterySR44 (Silver Oxide)DisplayLCD (7.5mm Character Height)IncludedHoltest, Spanner, Wooden Box Keywords Mitutoyo, 468-136, digital holtest, 20-25mm bore gauge, 3 point micrometer, internal micrometer, blind hole micrometer, TiN coated bore gauge, machinist tools.
