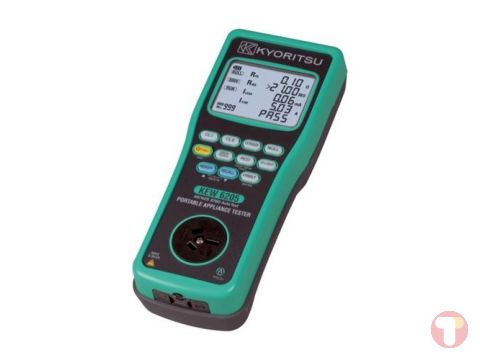

Kyoritsu 6205 – Portable Appliance Tester Battery Operated

Function Tests of contents Class Ⅰ Test • Protective conductor resistance (Test current 200mA DC nominal) • Insulation resistance test (250V or 500V) • Leakage current test (100-253V/50Hz) • Load current test (100-253V/50Hz) Class Ⅱ Test • Insulation resistance test (250V or 500V) • Leakage current test (100-253V/50Hz) • Load current test (100-253V/50Hz) Extension Lead Test • Protective conductor resistance (Test current 200mA DC nominal) • Insulation resistance test (between Line/Neutral-Earth short, Line/Neutral) • Leakage current test (100-253V/50Hz) • Polarity test RCD Test • RCD test (10mA/30mA) Mains voltage indlcation Display range 30V-270V Accuracy ±5V Protective conductor resistance test Measuring range 0.00-20.00Ω Open circuit voltage 5V±0.4V DC Measuring current 200mA DC(nominal value) Accuracy ±3%rdg±5dgt Insulation resistance test Rated volatge 250V 500V Measuring range 0.00-20.00MΩ No-load voltage 250V DC 20%,-0% 500V DC 20%,-0% Short circuit current 1.5mA DC or less Accuracy ±2%rdg±3dgt Load current/Leakage current test Item Load current Leakage current Mains voltage range 100-253V/50Hz Measuring range 0.10-10.00A rms 0.10-20.00mA rms Accuracy ±10%rdg±5dgt ±3%rdg±5dgt RCD test Rated voltage 230V -15% – 10%/50Hz Rated current 10mA/30mA Function × 1 × 5 Test duration 0.0ms-500.0ms 0.0ms-40.0ms Operating time accuracy ±2ms(≦40ms),±8ms(>40ms) General Power source LR6(AA)(1.5V) × 6 Applicable Standards IEC/EN61010-1 CAT II 300V, IEC/EN61010-2-030, IEC/EN61010-031, EN61326-2-2, AS/NZ3760 Dimensions / Weight 261(L) × 104(W) × 57(D)mm / Approx. 930g(including batteries) Included Accessories 7277(Mains lead), 7129A(Test lead with Alligator clip), 7161A(Flat test prod), 7276(Adaptor for Extension cord), 9193(Carrying case), 8928(Fuse[10A/250V]), 9121(Shoulder strap), Buckle, LR6(AA) x 6, Instruction manual Optional Accessories 8263-USB(USB cable with “KEW Report(software)”), 7275(Printer cable:Mini Din 6pin-D-sub 9pin), 7248(Test lead with Alligator clip and Flat test probe)
