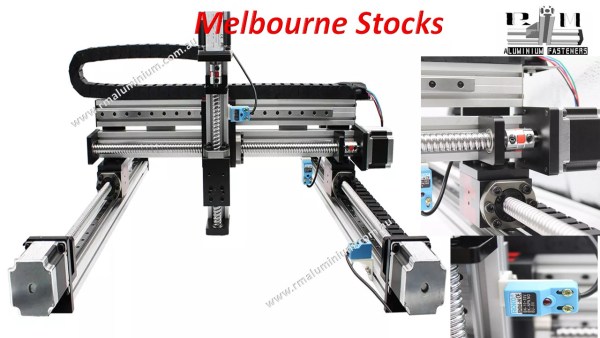

3 Axis X,Y,and Z linear CNC gantry robot 1000 X 1000mm X and Y Axis 100mm Z Axis linear table industrial CNC
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Description 3 axis linear axis with heavy-duty loads ,X and Y axis travel 1000mm ,Z axis travel 100mm . Material: Steel Alu. Screw Dia.16mm Vertical Load: 0~50kg , Horizontal Load: 0~100kg. Repeatability: 0.05~0.08mm. Stage Width: 120mm .Screw Lead: 4mm/10mm. Moving Speed: 0~300mm/s . Stroke: 100~500mm’ Brand RM Guide Width or Diameter 40mm Model Number SW40 Effective Stroke 50-4000mm Position Accuracy 0.05mm Screw Precision Grade C7 Screw Type 1605/1610 Stepper Motor Type 57-56 Stepper Motor Driver as to your requirements Controller as to your requirements Limit switch 3 Application field 3D printer automated production line robotic arm plasma detector Applicable industry medical equipment spraying equipment automatic welding series For more details please refer to the pictures For any other related product please click the link below : https://www.rmaluminium.com.au/product-category/cnc-3d-printer-parts-and-accessories Related
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
