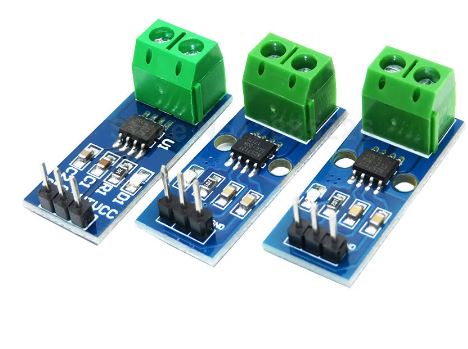

Hall Current Sensor Module ACS712 model for Arduino 20A
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Description 1, current sensor chip: ACS712ELC-20A; 2, pin 5V power supply, on-board power indicator; 3, the module can measure the positive and negative 20 amps, corresponding to the analog output 100mV / A; 4, there is no the detection current through, the output voltage is VCC / 2; 5, PCB board size: 31 (mm) x13 (mm); Note: ACS712 Hall detection principle, when you use to avoid magnetic field impact this! price $/ 1 pc Related
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
