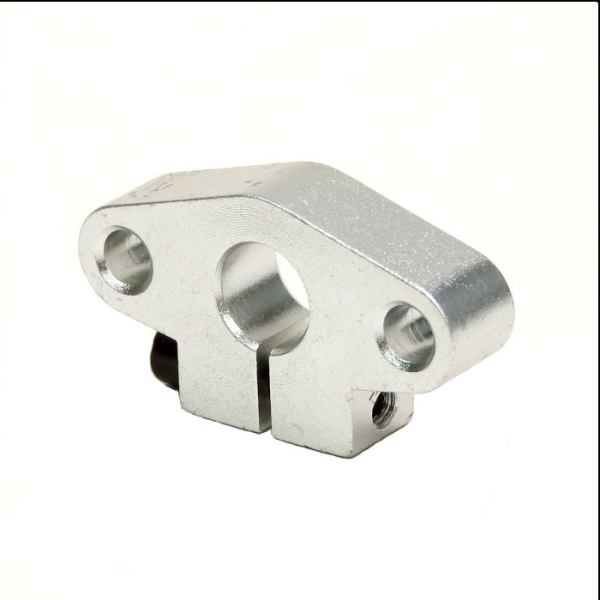

Linear Rail Shaft Guide/Support – 8mm Diameter – SHF8

Description These SHF8 Supports are usable with 8mm Smooth Rods, you can simply slide the rail through then tighten the clamp screw at the top to fix it in place. Then use our M5 Screws to attach them. If you need to disassemble or otherwise repair your machine, simply open up the clamp and remove the rail. This is one item so you may want to get two of these to support a single smooth rod. Specifications: Length – 43mm Width – 10mm Height – 24mm Shaft diameter – 8mm Fixing Hole diameter – 5.2mm to fit a M5 Screw Related
