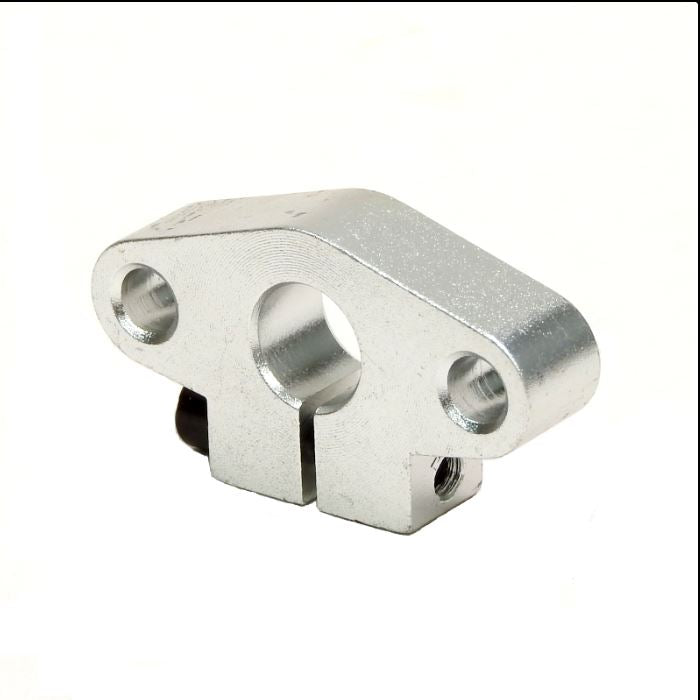

Linear Rail Shaft Guide/Support – 10mm Diameter – SHF10

Description These SHF10 Supports are usable with 10mm Smooth Rods, you can simply slide the rail through then tighten the clamp screw at the top to fix it in place. Then use our M5 Screws to attach them. If you need to disassemble or otherwise repair your machine, simply open up the clamp and remove the rail. This is one item so you may want to get two of these to support a single smooth rod. Specifications: Length – 43mm Width – 10mm Height – 24mm Shaft diameter – 10mm Fixing Hole diameter – 5.25mm to fit a M5 Screw Related
