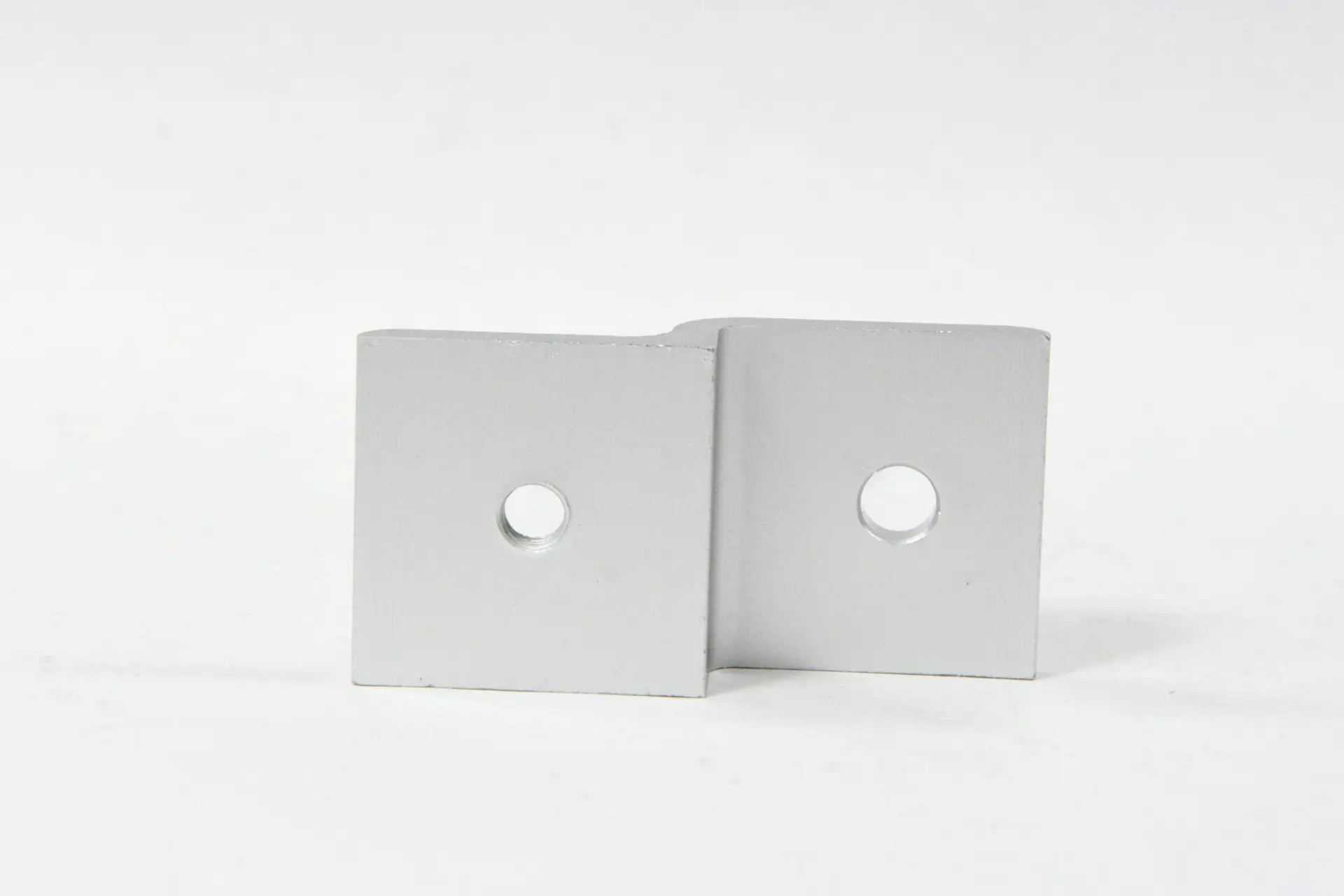

20 Series Single Arm Narrow Panel Retainer

Description The single arm narrow panel retainer is used to mount a panel when it is recessed within the T-slot or on the profile frame. It is a strong fastening option that is simple to use, provides stability, and reduces vibration. The single arm narrow panel retainer is frequently used when mounting one panel to a profile or in instances when larger profile series are used to mount two panels. It requires a drill through machining service on the panel. Series 20 Series Material Aluminum Grade 6105-T5 Process Milled Finish Anodize Color Clear A 39.00mm B M5 X 0.8 C 10.00mm D 22.00mm E 8.51mm F 5.50mm G 3.00mm H 3.00mm J 19.00mm K 7.20mm L 10.20mm M 20.00mm Weight 0.0140     Related
