Daico Industries Inc Model CDS0624
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block

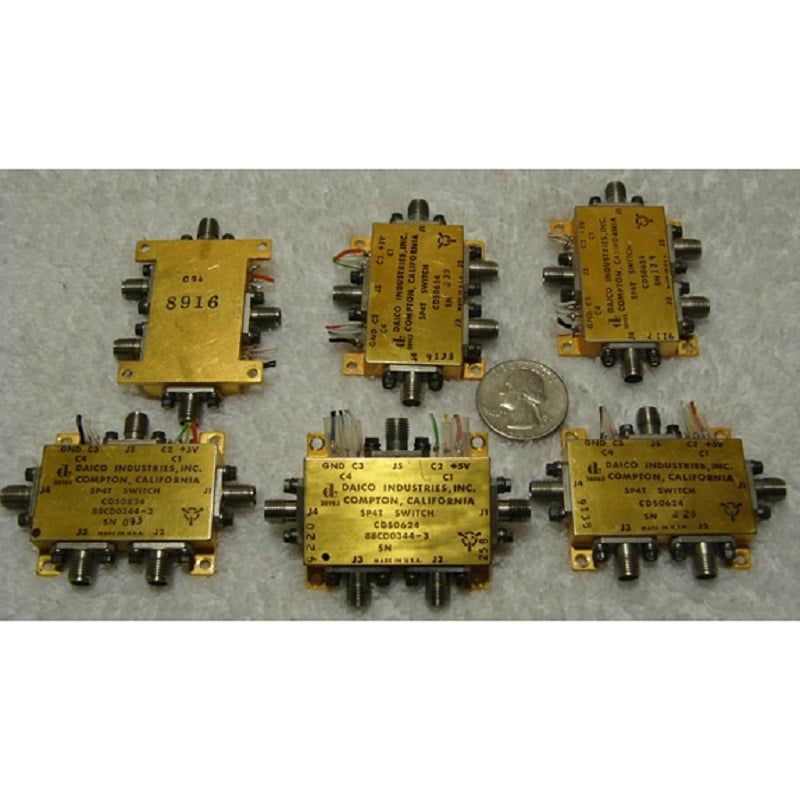

Daico Industries Inc Model CDS0624 SP4T The Daico model CDS0624 is a compact 4 position (SP4T) relay with SMA female connectors. Actuation voltage is 5 VDC (17.5 MA typical). These are PIN diode types, which are EXTREMEMY fast, (typically 1.52 MICROSECONDS) but usable only for very, very low power levels. 50 Ohms impedance. Rated 20-2000 MHz., 60 dB isolation to 1 GHz. TTL driver. Non-reflective. Top quality, gold plated body. Packing documents listed original cost of this relay at over $1600.00 each. Manufacturers: Daico Industries Inc MFR Part Number: CDS0624 Coil Voltage: 5 VDC (17.5 MA typical) Impedance: 50 Ohms Rating: 20-2000 MHz., 60 dB isolation to 1 GHz Connection Type: SMA female Important Dimensions Max Length 1.75 in / 44.45 mm Max Width 2.51 in / 63.754 mm Weight 2.00 oz / 56.699 g Condition Removed from military equipment, checked and guaranteed. Manufacturer’s Data Sheet Daico model CDS0624
Specifications
- Size (Inch)17
- Resolution1280 x 1024
- Aspect Ratio5:4
- Panel TypeTN
- Brightness (Min.) [cd/m²]150 cd/m²
- Color Gamut (Typ.)NTSC 72%(CIE1931)
- Contrast Ratio (Typ.)1000:1
- AC Input100~240V (50/60Hz)
