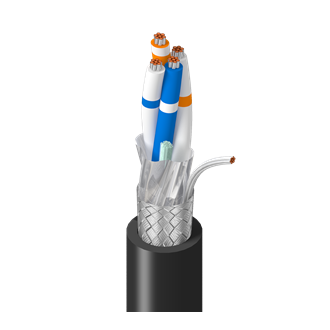

Belden 3107A Multi-Pair Cable, industrial RS-485

Description Specifications Product Overview Suitable Applications harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. Construction Details Conductor Element Number of Element AWG Stranding Material Pair(s) 2 22 7×30 TC – Tinned Copper Insulation Element Material Thickness Color Code Notes Pair(s) PE – Polyethylene (Foam) 0.025 in White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe HDPE Outer Shield Material Shield Type Material Coverage Drainwire Type Tape Braid Bi-Laminate (Alum Poly) Tinned Copper (TC) 100% 65% 22 AWG (7×30) TC Outer Jacket Material Material Thickness Nom. Diameter PVC – Polyvinyl Chloride 0.053 in 0.350 in Cable Diameter (Nominal) 0.350 in Electrical Characteristics Electricals Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds Shield) Characteristic Impedence Nom. Velocity of Prop. Max. Current Pair(s) 14.7 Ohm/1000ft 11 pF/ft 20.9 pF/ft 120 Ohm 78% 2.7 Amps per Conductor at 25ºC Nom. Outer Shield DCR 2.95 Ohm/1000ft High Frequency (Nominal/Typical) Element Frequency [MHz] Nom. Insertion Loss Pair(s) 1 MHz 0.5 dB/100ft Voltage UL Voltage Rating 300 V (CM, PLTC) Mechanical Characteristics Temperature UL Rating Operating 60°C -20°C to 60°C Bend Radius Stationary Min. Installation Min. 3.5 in 3.5 in Max. Pull Tension 80 lbs Bulk Cable Weight 58 lbs/1000ft Standards and Compliance Environmental Suitability Indoor, Sunlight Resistance, Oil Resistance Flammability / Fire Resistance UL1685 UL Loading, FT1, IEC 60332-1-2 NEC / UL Compliance Article 725, Article 800, CM, PLTC CEC / C(UL) Compliance CM CPR Euroclass Eca European Directive Compliance EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance China RoHS II (GB/T 26572-2011)
