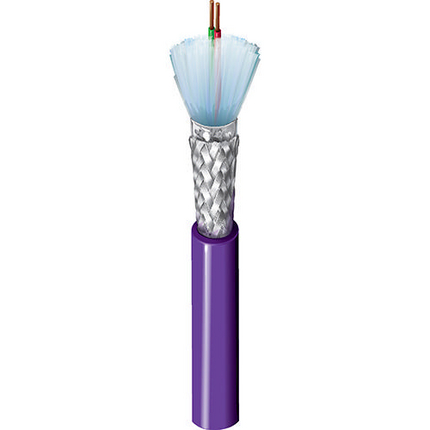

Belden 3079 Multi-Pair Cable

Description Specifications Product Overview Suitable Applications harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil. Construction Details Conductor Element Number of Element AWG Stranding Material Pair(s) 1 22 Solid BC – Bare Copper Insulation Element Material Thickness Color Code Notes Pair(s) PE – Polyethylene (Foam) 0.035 in Red & Green Flame Retardant, Foam w/ skin Outer Shield Material Shield Type Material Coverage Tape Braid Bi-Laminate (Alum Poly) Tinned Copper (TC) 100% 65% Outer Jacket Material Material Thickness Nom. Diameter PVC – Polyvinyl Chloride 0.043 in 0.315 in Cable Diameter (Nominal) 0.315 in Electricals Element Nom. Conductor DCR Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current Pair(s) 16 Ohm/1000ft (52 Ohm/km) 150 Ohm 78% 2.3 Amps per Conductor High Frequency (Nominal/Typical) Element Frequency [MHz] Nom. Insertion Loss Pair(s) 0.2 MHz 0.27 dB/100ft 4 MHz 0.67 dB/100ft 16 MHz 1.37 dB/100ft High Frequency (Nominal/Typical) Frequency [MHz] Max. Insertion Loss (Attenuation) 0.2 MHz 1.1 dB/100m 4 MHz 2.65 dB/100m 16 MHz 5.4 dB/100m Voltage UL Voltage Rating 300 V (CMG, PLTC), 600 V (UL AWM 20201) Mechanical Characteristics Temperature UL Rating Operating 75°C (UL AWM 20201) -30°C to 75°C Bend Radius Stationary Min. Installation Min. 2.4 in 2.4 in Max. Pull Tension: 50 lbs Bulk Cable Weight: 52 lbs/1000ft Standards and Compliance Environmental Suitability: Indoor, Sunlight Resistance Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, 1202, IEC 60332-1-2 NEC / UL Compliance: Article 725, Article 800, CM, PLTC AWM Compliance: 20201 CEC / C(UL) Compliance: CMG CPR Euroclass: Eca European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
